Mark V 510 to 520 Upgrade 1986 onwards

Mark V Model 510 to 520 Pro Fence and Table System Upgrade

    Add a More Versatile Rip Fence With Direct-Reading Scales To Your Model 510 Shopsmith Mark V

    This Pro Fence System has been engineered to give you even better control, precision and quality performance than you've come to expect from your Mark V Model 510. The professional-duty Pro Fence System features two interchangeable stainless steel scales for direct-reading of rip cut widths... plus... twin locking levers... one for the infeed end of the fence and another for the outfeed end to ensure a positive precise fence lock-down, even when working with large and / or heavy workpieces. It drops straight down onto the fence rails without tipping or fiddling, then slides along the rails on high-tech glides.

Plus - the fence is easier to square-up than a 510 fence (the alignment screw is more easily accessible on the front edge of the fence base)... and... the 520 floating tables feature a 3-point locking system to ensure that your fence is always parallel to the blade, unlike the single-point locking system on the Model 510 floating tables.

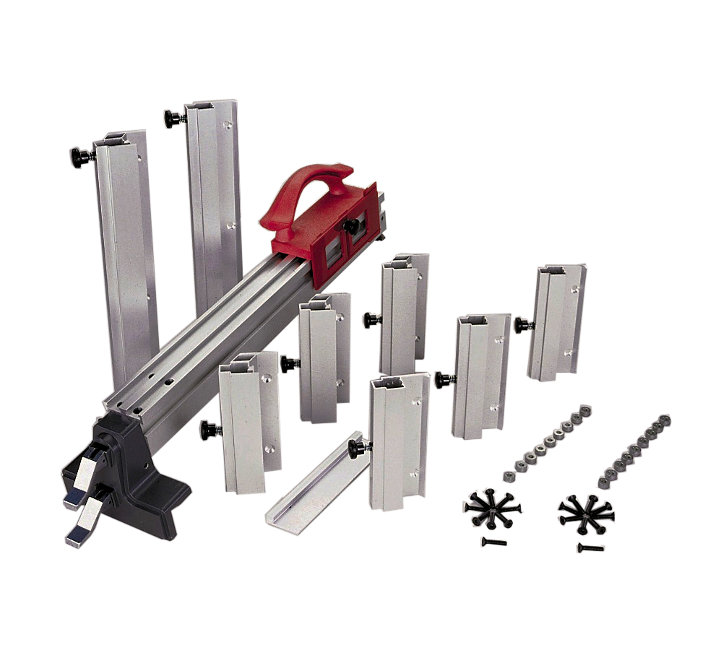

    Here's What's Included:

• Larger Rip Fence is 24-1/2" long x 2-1/2" thick  with dual T-slot tracks on the top surface and a T-slot track on each face for mounting accessories such as: rip fence mounted feather board, T-track utility light kit, flip-up rip fence stop
• Direct-Reading Rip Fence Scales let you set rip cut dimensions in an instant without measurement. Includes two magnetic stainless steel scales... one 45" long with a zero-point 6-1/2" from the left end and 38-1/2" from the right end -and a second scale 16" long with a zero-point 6-1/2" from the left end and 9-1/2" from the right end.
• Wider Fence Straddler
• (6) New Extruded Rails for main and extension tables
• All required fittings and hardware
• Instruction Manual fully describing alignment, maintenance, safety, tips and techniques.
• Special Set-Up and Alignment Gauge
