    Home > Service & Spares>Worktable & Extention Tables>Mark V 520 Worktable & Extention Table>Mark V 520 Extention or Floating Table Part 248
    Mark V 520 Extention or Floating Table Part 248 Maximize
    Next

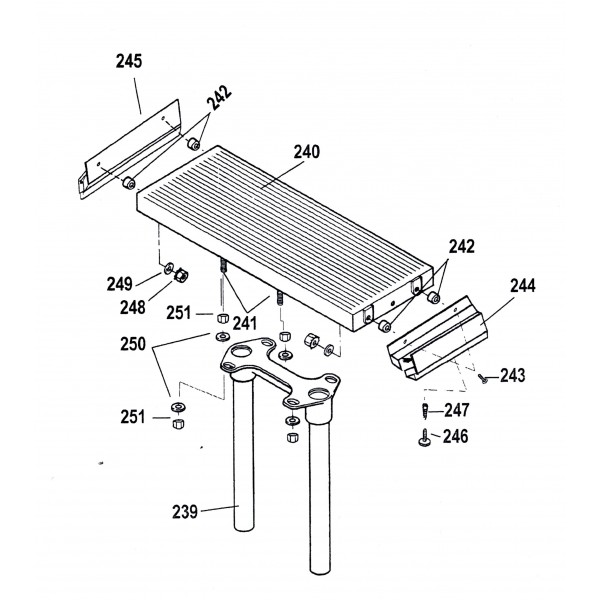

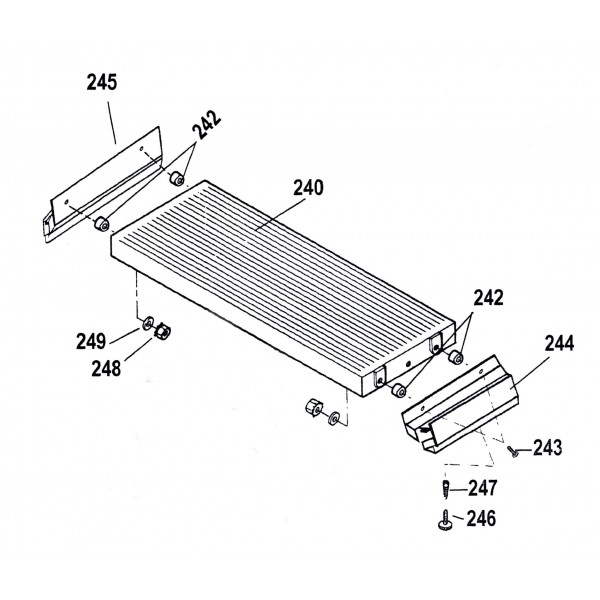

    Mark V 520 Extention or Floating Table Part 248

    515294 Mark V 520 Lock Nut for Extention or Floating Table Part 248





           This Pro Fence System has been engineered to give you even better control, precision and quality performance than you've come to expect from your Mark V Model 510.

    Many listed parts may be part of a larger KIT and are not always available individually

    With all specialist parts orders

    You are encouraged to email for assistance in order to get the right part.

    Please use the link under CONTACT US

    More details

    Customers who bought this product also bought:

    29 other products in the same category:

    Mark V Model 510 to 520 Pro Fence and Table System Upgrade   Upgrade To Model 520 Pro Fence and Table System

        Add a More Versatile Rip Fence With Direct-Reading Scales To Your Model 510 Shopsmith Mark V

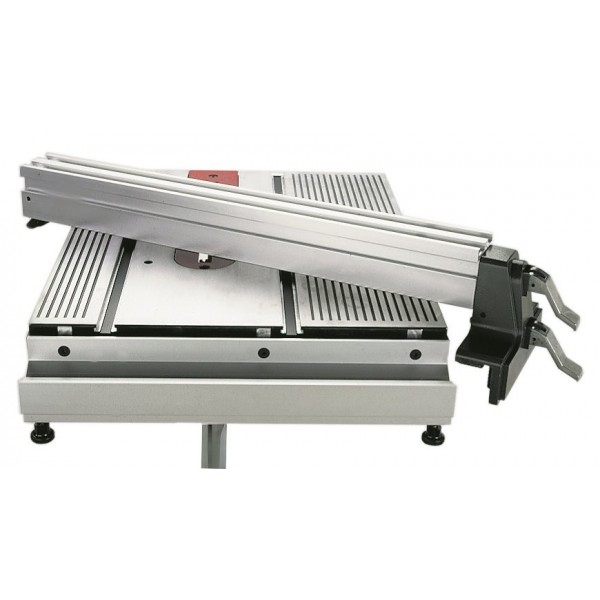

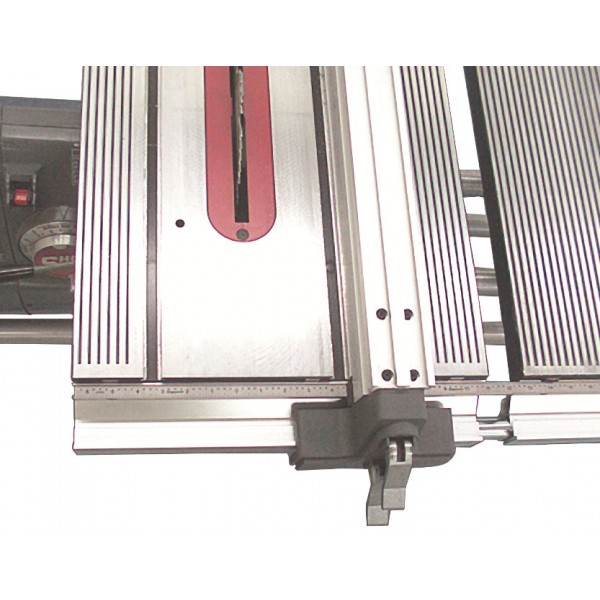

        This Pro Fence System has been engineered to give you even better control, precision and quality performance than you've come to expect from your Mark V Model 510. The professional-duty Pro Fence System features two interchangeable stainless steel scales for direct-reading of rip cut widths... plus... twin locking levers... one for the infeed end of the fence and another for the outfeed end to ensure a positive precise fence lock-down, even when working with large and / or heavy workpieces. It drops straight down onto the fence rails without tipping or fiddling, then slides along the rails on high-tech glides.



    Plus - the fence is easier to square-up than a 510 fence (the alignment screw is more easily accessible on the front edge of the fence base)... and... the 520 floating tables feature a 3-point locking system to ensure that your fence is always parallel to the blade, unlike the single-point locking system on the Model 510 floating tables.

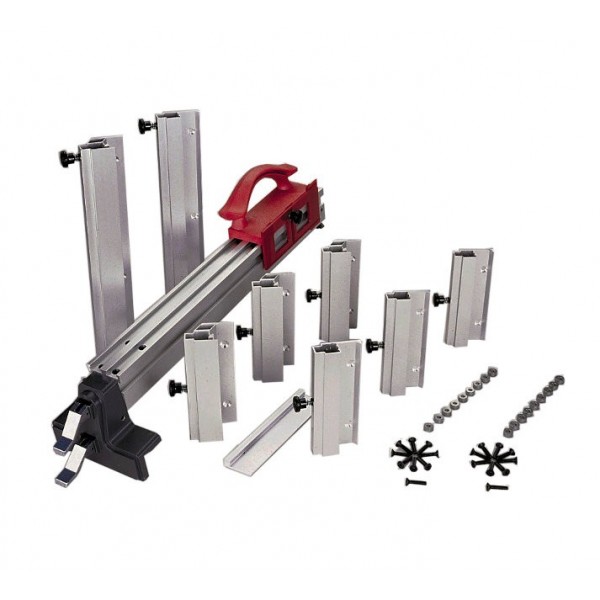

        Here's What's Included in the upgrade kit 555982:



    Larger Rip Fence, Direct Reading Rip Fence Scales, Wider Fence Straddler, Extruded Rails



    • Larger Rip Fence is 24-1/2" long x 2-1/2" thick  with dual T-slot tracks on the top surface and a T-slot track on each face for mounting accessories such as: rip fence mounted feather board, T-track utility light kit, flip-up rip fence stop

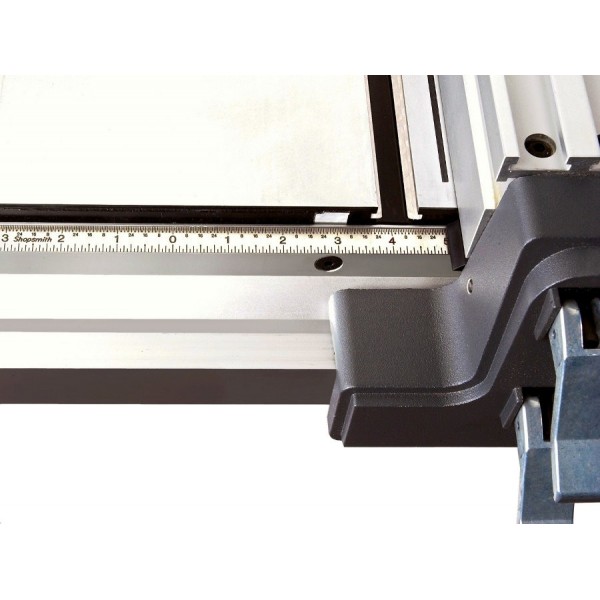

    • Direct-Reading Rip Fence Scales let you set rip cut dimensions in an instant without measurement. Includes two magnetic stainless steel scales... one 45" long with a zero-point 6-1/2" from the left end and 38-1/2" from the right end -and a second scale 16" long with a zero-point 6-1/2" from the left end and 9-1/2" from the right end.
    • Wider Fence Straddler

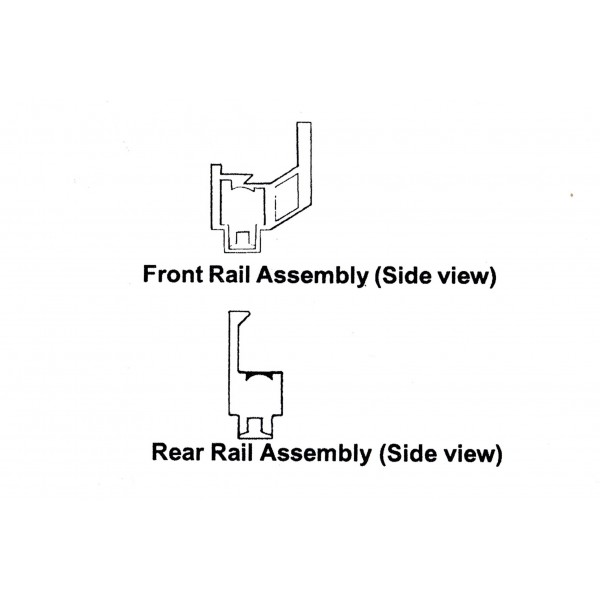

    • (6) New Extruded Rails for main and extension tables
    • All required fittings and hardware
    • Instruction Manual fully describing alignment, maintenance, safety, tips and techniques.
    • Special Set-Up and Alignment Gauge
