    Mark V 520 Main-Extention & Floating Table Spacer Part 146 & 242 Maximize
    Next

    Mark V 520 Main-Extention & Floating Table Spacer Part 146 & 242

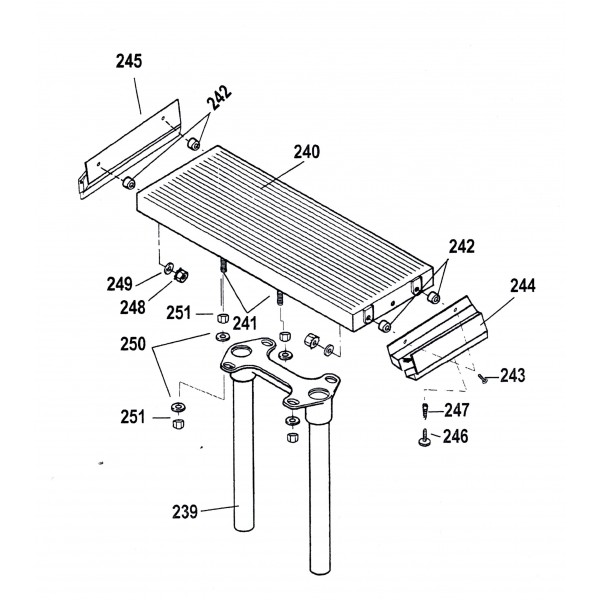

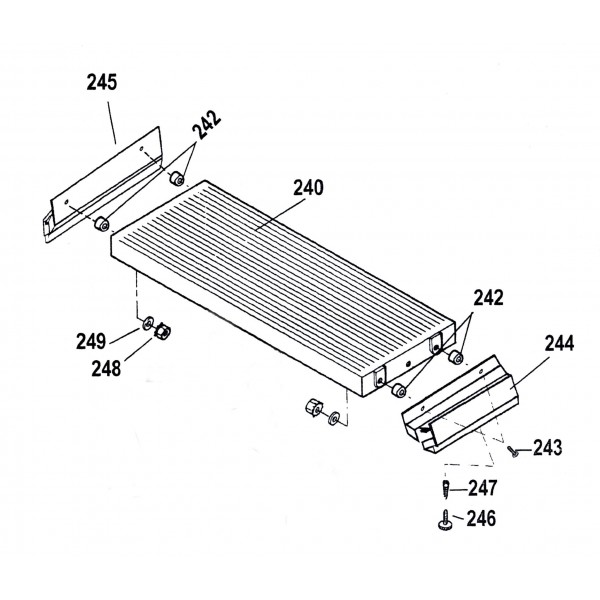

    518403-555913 Mark V 520 Spacer

    Main Table Part 146

    Extention Table Part 242

    Floating Table Part 242

    Alternative is 555913 plus thick washer





           This Pro Fence System has been engineered to give you even better control, precision and quality performance than you've come to expect from your Mark V Model 510.

    IF THE ITEM IS PRICED THERE IS USUALLY STOCK AVAILABLE

    All specialist parts orders have an admin fee in addition to the parts price

    You are encouraged to phone for assistance in order to get the right part.

    Please use the link under CONTACT US



    More details

    518403

    £ 6,95

    Customers who bought this product also bought:

    30 other products in the same category:

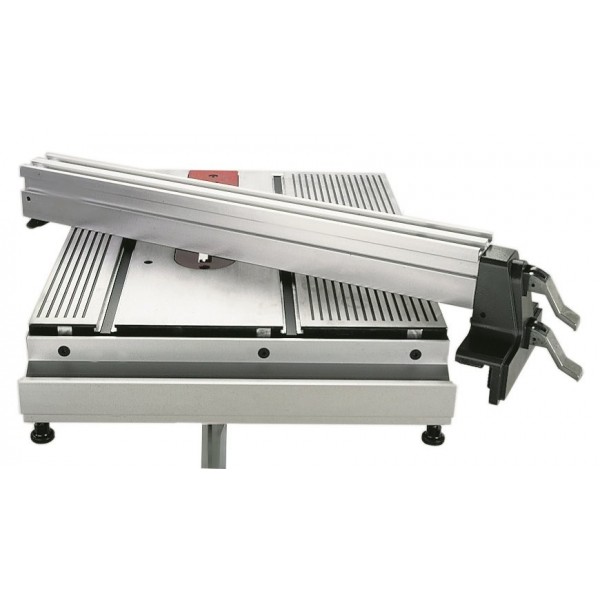

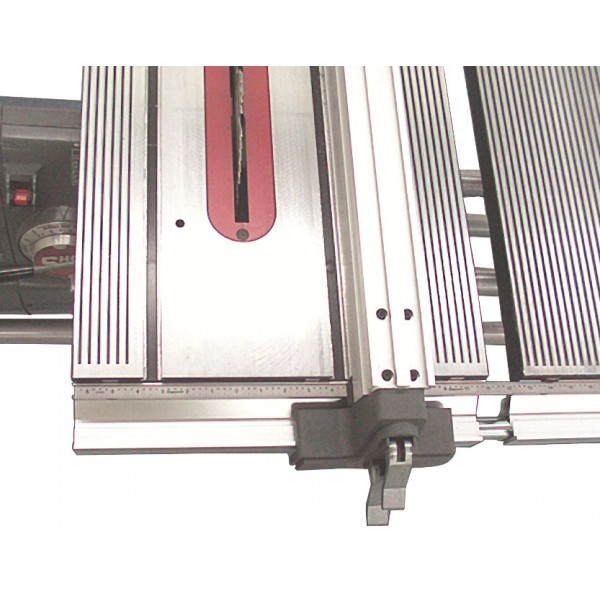

    Mark V Model 510 to 520 Pro Fence and Table System Upgrade

        Add a More Versatile Rip Fence With Direct-Reading Scales To Your Model 510 Shopsmith Mark V



        This Pro Fence System has been engineered to give you even better control, precision and quality performance than you've come to expect from your Mark V Model 510. The professional-duty Pro Fence System features two interchangeable stainless steel scales for direct-reading of rip cut widths... plus... twin locking levers... one for the infeed end of the fence and another for the outfeed end to ensure a positive precise fence lock-down, even when working with large and / or heavy workpieces. It drops straight down onto the fence rails without tipping or fiddling, then slides along the rails on high-tech glides.



    Plus - the fence is easier to square-up than a 510 fence (the alignment screw is more easily accessible on the front edge of the fence base)... and... the 520 floating tables feature a 3-point locking system to ensure that your fence is always parallel to the blade, unlike the single-point locking system on the Model 510 floating tables.

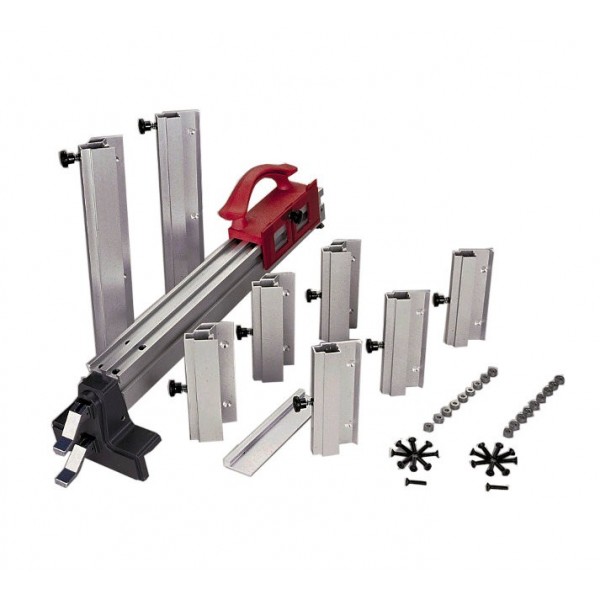

        Here's What's Included in the upgrade kit 555982:



    Larger Rip Fence, Direct Reading Rip Fence Scales, Wider Fence Straddler, Extruded Rails

    Larger Rip Fence With Dual Top T-Slot Tracks and a T-Slot Track On Each Face      Direct Reading Rip Fence Scales

    • Larger Rip Fence is 24-1/2" long x 2-1/2" thick  with dual T-slot tracks on the top surface and a T-slot track on each face for mounting accessories such as: rip fence mounted feather board, T-track utility light kit, flip-up rip fence stop

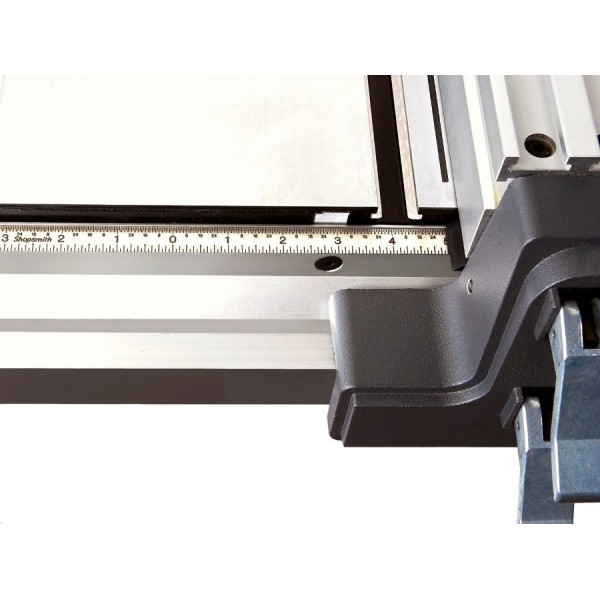

    • Direct-Reading Rip Fence Scales let you set rip cut dimensions in an instant without measurement. Includes two magnetic stainless steel scales... one 45" long with a zero-point 6-1/2" from the left end and 38-1/2" from the right end -and a second scale 16" long with a zero-point 6-1/2" from the left end and 9-1/2" from the right end.
    • Wider Fence Straddler

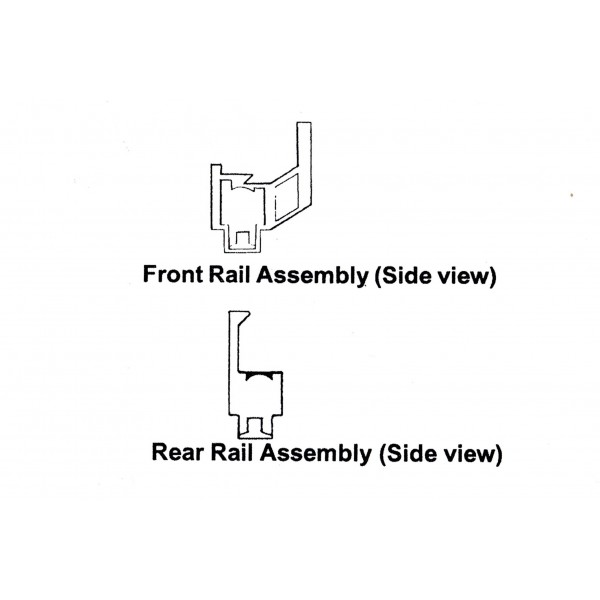

    • (6) New Extruded Rails for main and extension tables
    • All required fittings and hardware
    • Instruction Manual fully describing alignment, maintenance, safety, tips and techniques.
    • Special Set-Up and Alignment Gauge
